Ring Mesh - Antique Appearance & Modern Fashion Feeling

Architectural ring mesh, also called ring mesh, chain braid ring mesh or ring decorative mesh, is a new type of decorative wire mesh. Its shape is ring which includes flat type and round type. The architectural ring mesh connecting type includes metal ferrule connecting hook or ring by ring connecting. The ring by ring connecting type is similar to the hook by hook connecting of architectural chain curtain. And each single ring encloses four rings with same sizes or different sizes. Compared with previous welded ring mesh, the connected ring mesh is more flexible and easy to pass through. What's more, the material we use can bear the long-term erosion by salty air and the stresses caused by wind. So it is not only suitable for interior decoration but also exterior protection. When it is used in places as curtains where need frequent close and open, ring hanging system is strongly recommended. It can help the ring mesh slide freely.

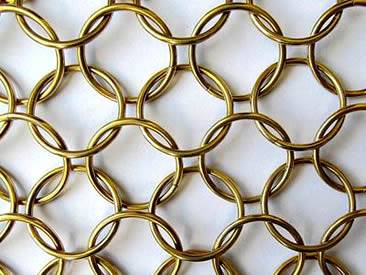

Single layer architectural ring mesh is connected ring by ring.
ARM-01: Single layer stainless steel architectural ring mesh.
Double layers architectural ring mesh is connected ring by ring.
ARM-02: Double layers galvanized steel architectural ring mesh.
A piece of architectural ring mesh is connected ring by ring.
ARM-03: Architectural ring mesh is connected ring by ring.
A piece of architectural ring mesh is connected by 8-shaped ferrule.
ARM-04: Architectural ring mesh in golden color is connected by 8-shaped ferrule.
A piece of ring mesh encloses with the same size loops.
ARM-05: Architectural ring mesh encloses loops with the same size.
A piece of ring mesh encloses with different size loops.
ARM-06: Architectural ring mesh encloses loops with different size.
A piece of low carbon steel ring mesh is connected by 8-shaped ferrule.
ARM-07: Low carbon steel architectural ring mesh is connected by 8-shaped ferrule.
A piece of stainless steel ring mesh is connected by tube-shaped ferrule.
ARM-08: Stainless steel architectural ring mesh is connected by tube-shaped ferrule.

Specification

  • Material: carbon steel, stainless steel, aluminum, copper, brass, bronze, etc.
  • Outer diameter: 10 mm - 50 mm.
  • Inner diameter: 7 mm - 44 mm.
  • Wire thickness: 0.7 mm - 1.5 mm.
  • Finish: color paint, polished, nickel Plated.
  • Color: original metallic color or enameled colors: white, black, gold, gunmetal, copper, bronze, etc.
  • Ring numbers: 35000 rings/m2, 14200 rings/m2, 135000 rings/m2.
  • Mesh width (1 panel): 1.0 m - 6.096 m (3' 3" - 240").
  • Mesh height (1 panel): 5.0 m (16' 5").
Silver white stainless steel ring mesh is connected ring by ring.
ARM-09: Stainless steel architectural ring mesh.
A piece of bronze ring mesh is connected ring by ring tightly.
ARM-10: Bronze architectural ring mesh.
A piece of ring mesh with brass color is connected ring by ring and a door is behind the mesh.
ARM-11: Architectural ring mesh with brass color.
A piece of ring mesh with copper color is connected ring by ring tightly.
ARM-12: Architectural ring mesh with copper color.
A piece of ring mesh with silver white color is connected ring by ring.
ARM-13: Architectural ring mesh with silver white color.
A piece of ring mesh with brass color is connected ring by ring.
ARM-14: Architectural ring mesh with brass color.
Silver white stainless steel ring mesh with a pen on it.
ARM-15: Architectural ring mesh 14200 rings/m2.
A piece of small ring mesh with a pen on it.
ARM-16: Architectural ring mesh 135000 rings/m2.

Feature
Architectural ring mesh is a new decorative material in the modern architectural design. Its special metal luster and shimmering create a unique environment.

  • Fire-proof and sunlight-proof. Its meting point is much higher than that of cloth curtain and it is immune to the intense tropical sunlight.
  • Moisture and rust resistance. The surface coating can prevent water and rust resistance when used in humidity conditions.
  • Corrosion resistance. Ring mesh made of stainless steel can be corrosion resistance in harsh conditions.
  • Stable and not deformation. No shrinks or stretches when used.
  • Light diffusion. Ring mesh has strong light filtration properties. No matter how strong sun shine is, metal ring mesh will not be affected and protect your architecture. And the degree of light diffusion is controlled by mesh fullness and prevailing light conditions.
  • Good ventilation. Because of the ring design, air circulates very fluently. And at the same time, it can relatively allow free circulation of warm and cool air.
  • Beautiful appearance and various color. The ring mesh can be sprayed into various colors.
  • Versatility. It can be used as interior decoration or outer protection.
  • Easy installation and maintenance. Stains can be washed off by mild soap water.
  • Durability and environmental friendly. Ring mesh is made of metal material, so it can be used for a long time and you don't need to constantly change it.
Brass plating architectural ring mesh with six smooth rings.
ARM-17: Brass plating architectural ring mesh features bright diffusion and good ventilation.
Architectural ring mesh made of stainless steel and each ring is welded with other ring.
ARM-18: Stainless steel and welded architectural ring mesh features firm and stable structure.

Application
In architectural design, architectural ring mesh satisfies both functional and aesthetic functions. Therefor it is especially suitable for interior design and decoration.

  • Function: room dividers, ceiling decoration, wall decoration, door curtain, window screen, rolling shutters, shower curtain, fireplace screen, light partitioning, balustrades, shop exhibition stands, building facade, column cladding, craft projects, sun protection, etc.
  • Application place: balcony, corridor, elevator, hotel, restaurant, office, building, grand ballroom, museum, concert halls, dining hall, exhibition halls, shopping mall, airport access, theater, etc.
There is a wall which is made of brass wire mesh under the light.
ARM-19: Brass architectural ring mesh used for wall decoration features aesthetic appeal.
Low carbon steel ring mesh with 8 type ferrule is used for door decoration.
ARM-20: Low carbon steel architectural ring mesh used for door decoration features durability.
Gold color ring mesh is used for interior isolation.
ARM-21: Gold color architectural ring mesh used for interior isolation features noble atmosphere.
Black ring mesh with 8 type ferrule is used for corridor decoration.
ARM-22: Black architectural ring mesh is used for corridor decoration.
A corner of door with metal frame and the door screen is made of ring mesh.
ARM-23: Architectural ring mesh used for door screen features rust resistance.
A kitchen divider is made of purple ring mesh and beside the ring mesh are table and chairs.
ARM-24: Purple architectural ring mesh used for kitchen divider brings elegant atmosphere.
